Composite cores

Epsilon Composite Cable is specialized in the production of composite cores for High Voltage cables, made in Pultrusion.

About pultrusion, our main manufacturing process

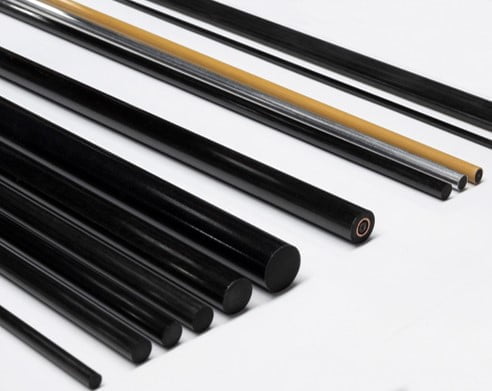

Our composite cores can be either:

  • 100% carbon fiber cores, for any customer solution (single-strand or multi-strand conductors)

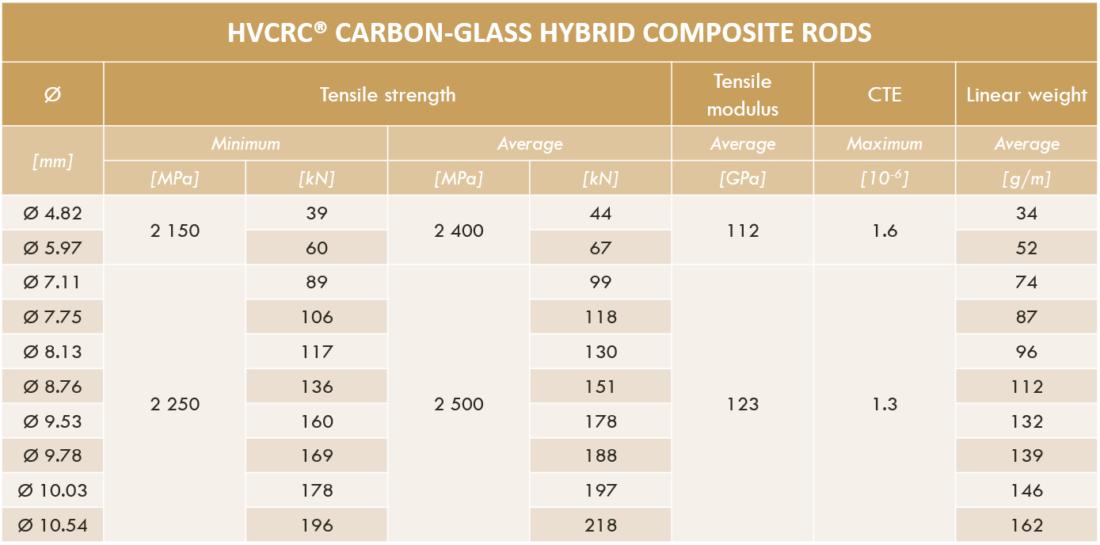

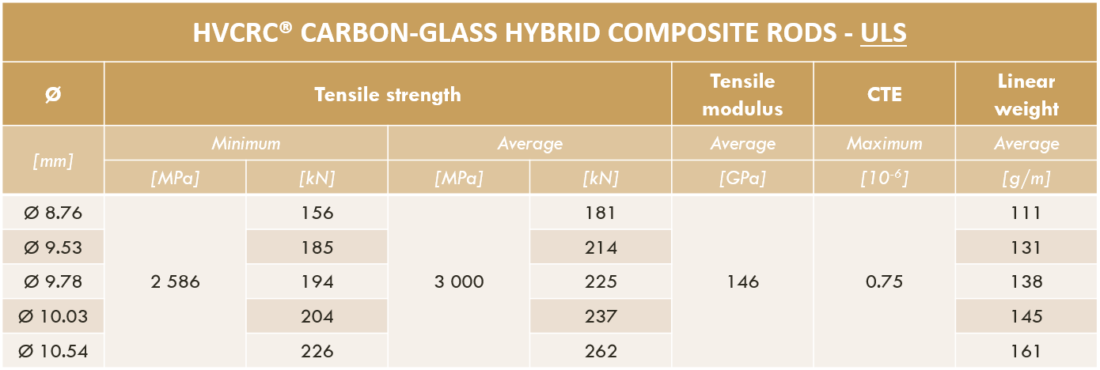

  • Glass-carbon hybrid cores, for HVCRC® conductors
  • Carbon fiber cores with outer protective layer (such as high performance thermoplastics) for abrasion, impact or chemical resistance
  • Cores with integrated fiber optics or specific wire

Dimensions:

  • Round shape or any special shape
  • Core diameter from 3mm to 30mm
  • Spool length up to 10km

Composite cores main properties

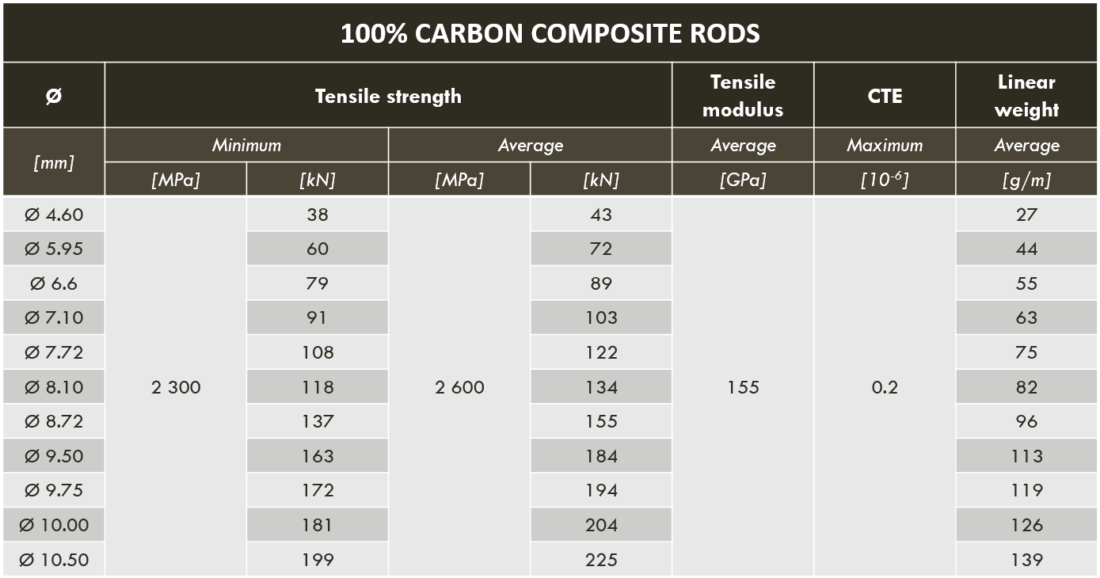

You can find below the main properties of some of our standard composite cores:
